Products Specification
| Items |
Specification |
| Main Steel Frame |
Column |
Q235, Q345 Welded H Section Steel |
| Beam |
Q235, Q345 Welded H Section Steel |
| Secondary Frame |
Purlin |
Q235 C and Z purlin |
| Knee brace |
Q235 Angle Steel |
| Tie Rod |
Q235 Circular Steel Pipe |
| Brace |
Q235 Round Bar |
| Vertical and Horizontal Support |
Q235 Angle Steel, Round Bar or Steel Pipe |
| Maintenance system |
Roof Panel |
EPS Sandwich Panel / Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
| Wall Panel |
Sandwich Panel / Corrugated Steel Sheet |
| Accessories |
Window |
Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window |
| Door |
Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door |
| Rainspout |
PVC |
| Live load on Roof |
In 120kg/Sqm (Color steel panel surrounded) |
| Wind Resistance Grade |
12 Grades |
| Earthquake-resistance |
8 Grades |
| Structure Usage |
Up to 50 years |
| Finishing Options |
Vast array of colors and textures available |
| Paint Options |
Alkyd paiting, two primary painting, two finish painting
(gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanize |
Company Profile
KXD's integrated products line included pre-engineered steel structure building,steel warehouse,steel workshop , prefabricated house,container/modular house and poultry house whatever it is for industrial,commercial,agricultural or residential applications.

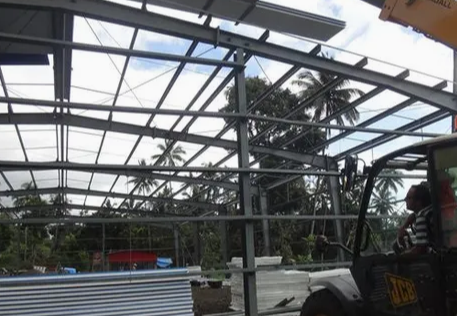

Big Metal Steel Structure Logistics Warehouse under construction:
Steel structure building componet system:primary members H steel , secondary members, roof and wall sheeting (or sandwich panel)connected to each other and various other building components. These buildings can be provided with different structural and non-structural additions such as skylights, wall lights, turbo vents, ridge ventilators, louvers, roof monitors, doors & windows, trusses, mezzanine floors, canopy, bridge crane if need, insulation etc., based on the customer's requirements. All the steel buildings are custom designed to be lighter in weight and high in strength. Thus steel building designs have become more flexible, durable and adaptable over the last four decades which has made steel one of the preferred materials for building construction.
Structural diagram
Steel productes loading and unloading:
The packing method for main steel frame use steel pallet, This method packing can better protect the steel frame, and alos the loading and unloading will be fast and convenient since it could be taken as a whole.(see attached photo). The best advantage can save the quantity of shipping contaier, so it will save the cost of ocean freight, save unlading time and cost.
Steel structure commercail building-Uruguay Audi Showroom Construction.
Size:L85M*W40.8M*8.8M
Uruguay project is with the total area up to 3485sqm with the 50.42m span,eave height being 8.8. The steel amount is 254.2 ton and the feature of this building is curtain wall type.
Mauritius project
Mauritius project is a building with 3-floor office areas to meet up the official and logistic demands at the same time. Based the customer's request, the steel structures are hot dip galvanized
ones to deal with the anti-rust requirements. The wall is using the horizontal installed V780 wave-shape colorbond steel sheet which is in perfect aesthetic situation. The lean-to building in front of the facade is equipped with aluminium louver. This buildin will be a land-mark in the local place.
Angola Supermarket Project
Angola shopping mall&industrial park project is a steel building complex with 2 shopping malls and 2 factories. This project requires professional design and architectual capabilities, quality products and one-stop project management services. KXD has successfully fullfilled the duty to help our client to design, manufacture and erect the whole buildings.
