Large Span Customizable Height Prefab Steel Construction Portal Frame Building with 50 Years Lifespan

Model Number : KXD-SS7

Customization : Customized Logo: Min. Order: 5000

MOQ : 500 sqm

Delivery Time : 25 days

Drawing : Design The Drawing as Your Demand

Price : USD 69-100 per sqm

File Formats : Solid Works, Autocad(Dxf, Dwg), Pdf

Certification : ISO/CE/SGS

Payment Terms : L/C,T/T

Buildingheight : Customizable, typically 3m to 12m

Drawing Design : Provided By Customers Or Designed By Us

Wall And Roof : Steel cladding sheet,Sandwich Panel

Place of Origin : Qingdao，China

Supply Ability : 500000 tons/month

Service : Design, Manufacture And Installation

Brand Name : KXD

Packaging Details : steel pallet

Contact Now

Large Span Steel Structure Building Portal Frame Prefab Light Gauge Steel Construction

Product Overview

Large Span Steel Structure Building Portal Frame Prefab Light Gauge Steel Construction offers versatile and durable solutions for industrial and commercial applications.

Steel Structure Workshop Specifications

Different sizes: MOQ is 200m², width × length × eave height
Different types: Single slope, double slope, single span, double-span, multi-span, single floor, double floors
Different Bases: Cement and steel foundation bolts
Different Columns and Beams: Material Q345(S355JR) or Q235(S235JR) steel, all bolt connections, straight cross-section or variable cross-section
Different bracings: X-type or V-type or other type bracing made from angle, round pipe, etc.
Different Purlins: C or Z type: Size from C120~C320, Z100~Z200
Different Roof and Wall Panel: Single colorful corrugated steel sheet 0.326~0.8mm thick (1150mm wide) or sandwich panel with EPS, ROCK WOOL, PU insulation thickness around 50mm~100mm
All accessories: Semi-transparent skylight belts, ventilators, down pipe, galvanized gutter, etc.
Surface: Two layers of anti-rust paint
Packing: Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ

Technical Specifications

Standard	AISI, ASTM, BS, DIN, GB, JIS
Grade	Q235B/Q355B Carbon Steel
Place of Origin	Shandong, China
Brand Name	KXD Steel Structure
Model Number	Steel Structures
Type	Light, Light Steel Structure Frame
Application	Warehouse/Workshop/Sheds/Office Building
Tolerance	3%
Processing Service	Bending, Welding, Decoiling, Cutting, Punching
Product name	Steel Structure warehouses/workshop/steel building
Main structure	Section Column
Purlin	C/Z Galvanized Steel (Q235)
Surface treatment	Painting or Galvanizing
Wall & Roof panel	Steel Sheet or Sandwich Panel
Structure type	Light Portal Frame Structure
Certificate	ISO9001:2008
Life span	Up to 50 Years
Wind Resistance	181km/h

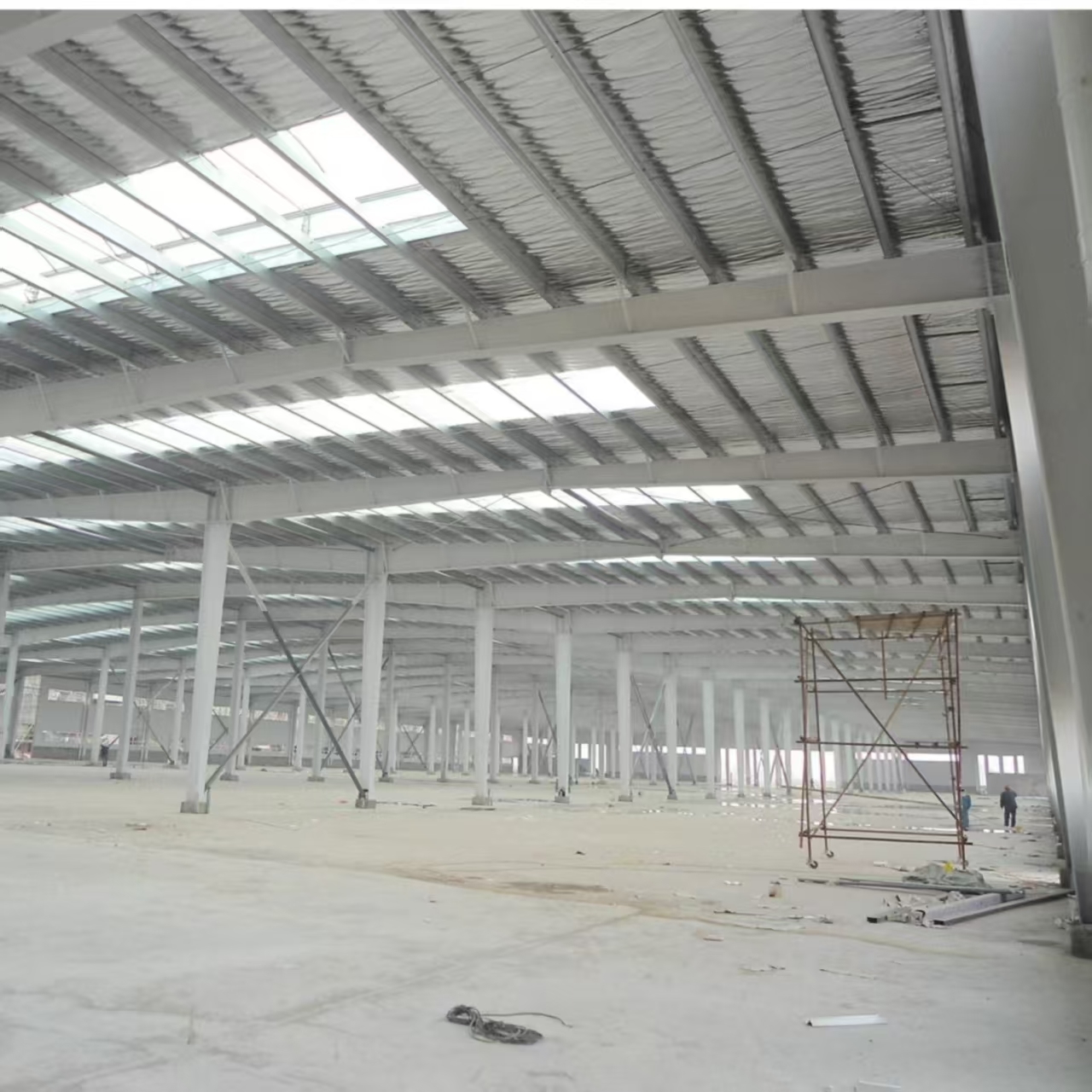

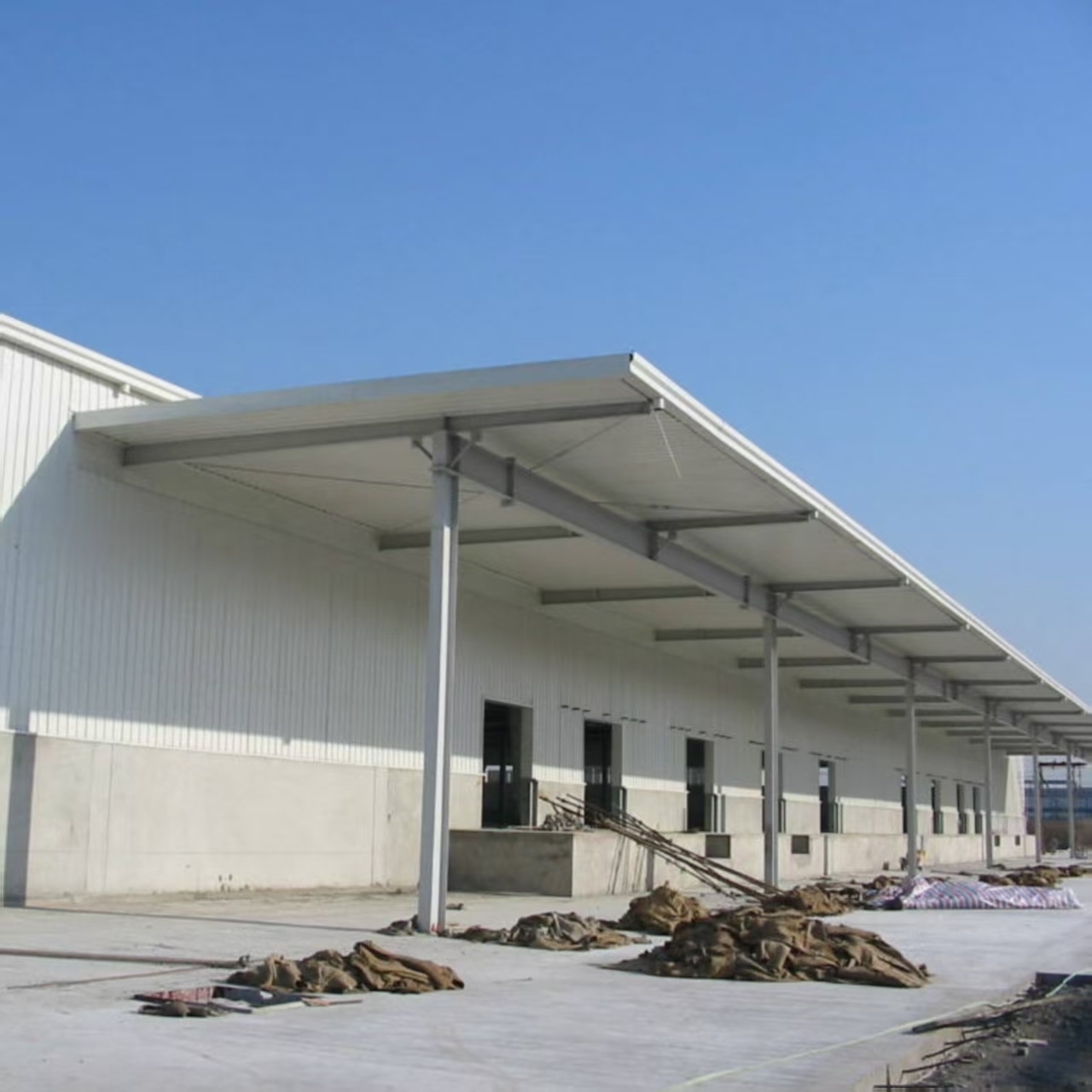

Product Gallery

Large Span Customizable Height Prefab Steel Construction Portal Frame Building with 50 Years Lifespan

Product Tags:

Large Span Steel Structure Building

Customizable Height Prefab Steel Construction

50 Years Lifespan Portal Frame Building

Large Span Customizable Height Prefab Steel Construction Portal Frame Building with 50 Years Lifespan Images
